From Numbers To Graphs – Wearable Data Visualization With Code Interpreter

Understood. Let’s address the issues step by step:

1. We’ll first read the file and inspect its contents.
2. Address the issue where every second line contains only a quotation mark.
3. Correct the misplaced quotation marks in the ‘Roll’ column.
4. Parse the cleaned contents into a Pandas DataFrame.

I’ll start by reading and inspecting the file.

As you’ve mentioned, every second line contains only a quotation mark. Let’s remove these lines and then concatenate the quotation mark to the end of the preceding line to correct the misplaced quotation mark in the ‘Roll’ column.

The lines now appear to be in the correct format.

Next, we’ll parse these cleaned lines into a Pandas DataFrame.

The data has been successfully cleaned and loaded into a Pandas DataFrame. Let me know if there’s anything else you’d like assistance with regarding this dataset or any other queries.

I apologize for the inconvenience. It seems there was an internal error. Let me quickly fetch the first few rows and basic statistics for the dataset again.

I apologize for the oversight. It seems that after the error, the previously loaded data was lost. I’ll need to reload and clean the CSV file before providing you with the first few rows and its basic stats. Let me handle that swiftly.

I apologize for the inconvenience. It seems that the file was lost during the internal error.

Would you mind re-uploading the CSV file? Once you do, I’ll quickly parse the data and provide you with the requested details.

Thank you. I’ll proceed to clean the data, load it into a Pandas DataFrame, and then provide you with the first few rows and its basic statistics.

I apologize for the oversight. I forgot to import the necessary libraries. Let me correct this and proceed with the steps.

Here are the results:

First Few Rows of the Dataset:

markdown
       Timestamp   Yaw  Pitch   Roll
0  1689025918989 -1.25  -1.01 -33.67
1  1689025919134 -1.28  -1.02 -35.92
2  1689025919135 -1.32  -1.05 -37.92
3  1689025919284 -1.35  -1.06 -39.86
4  1689025919286 -1.38  -1.08 -41.72

Basic Statistics:

shell
      Timestamp         Yaw       Pitch        Roll
count  1.89e+02   189.000000  189.000000  189.000000
mean   1.689026e+12    2.640370  -12.310423   -9.678360
std    4.459119e+03   71.406461   36.113329   63.739027
min    1.689026e+12 -167.680000 -112.320000 -175.430000
25%    1.689026e+12  -46.000000  -28.800000  -59.980000
50%    1.689026e+12   -1.480000   -5.920000  -21.940000
75%    1.689026e+12   43.530000   15.890000   26.530000
max    1.689026e+12  173.340000   55.970000  169.300000

Let me know if you’d like any further analysis or details.

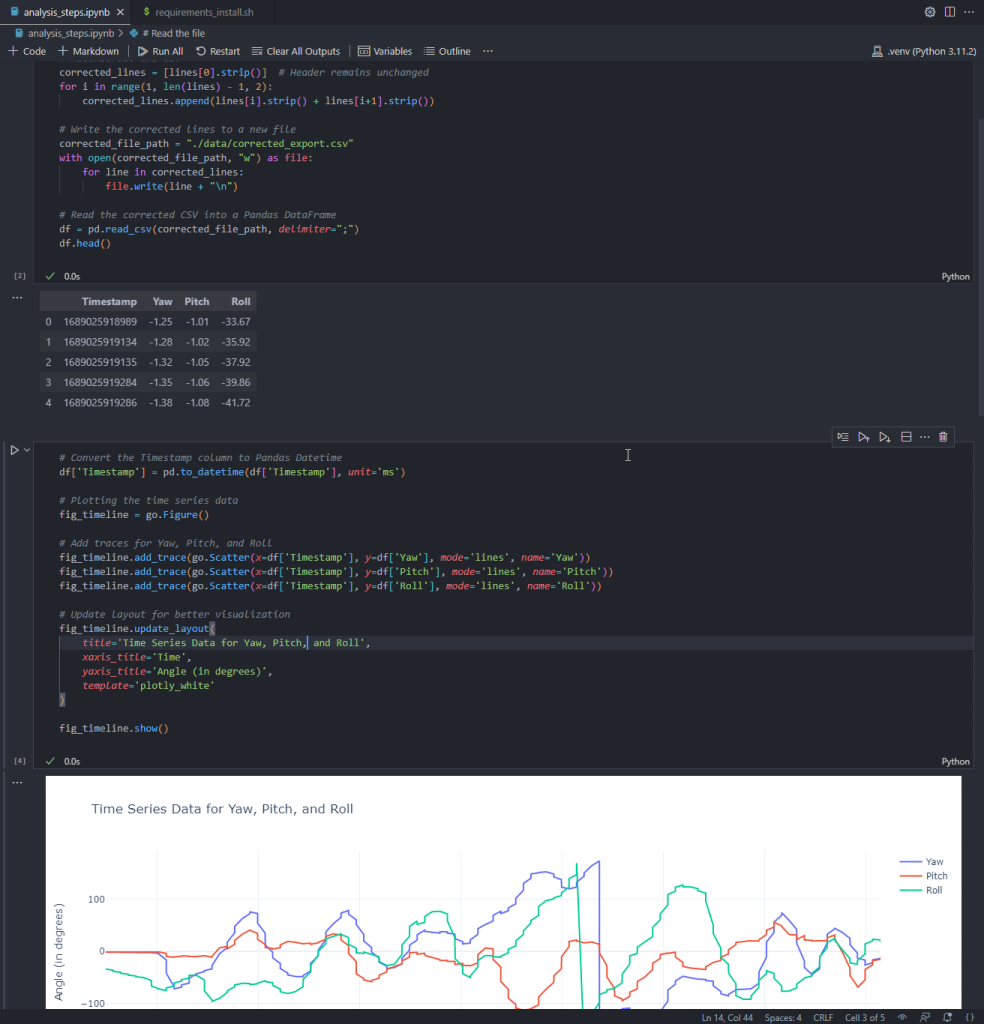

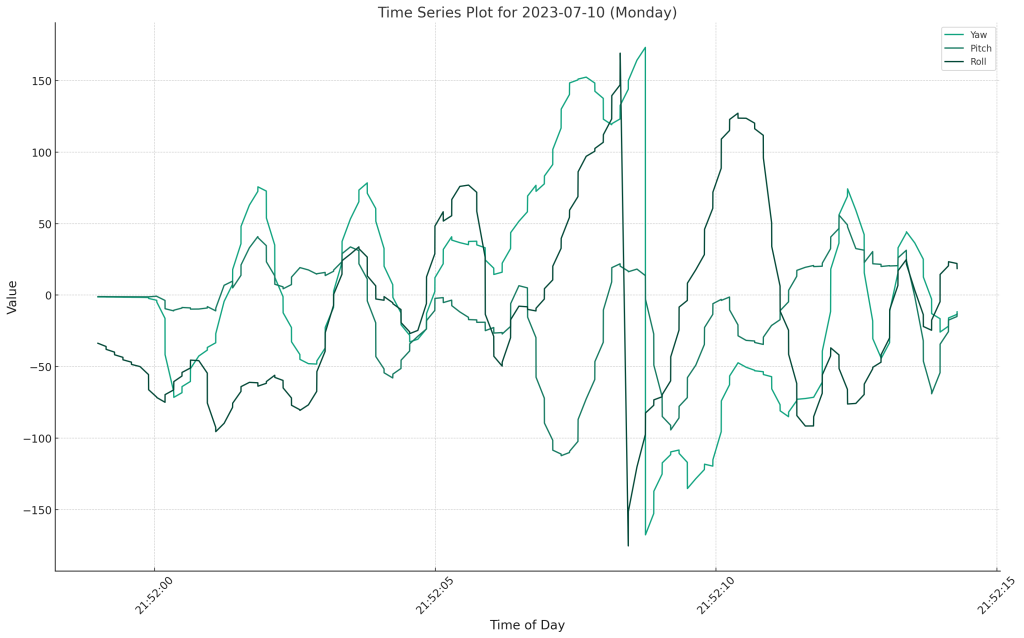

Here’s the time series plot for the ‘Yaw’, ‘Pitch’, and ‘Roll’ columns. The x-axis represents the time of day, and the chart title includes the date with the name of the day.

Let me know if you’d like any further adjustments or analysis.

It seems that I’m unable to directly render the image snapshot of the interactive plot due to a missing package in this environment.

However, I can provide you with the interactive version as an HTML download. Let’s proceed with that.

You can download the interactive version of the time series plot from this link.

Once you open the downloaded HTML file in a browser, you’ll be able to interact with the plot. Let me know if there’s anything else I can assist you with!

Alright, let’s break down the process:

1. Convert each (Yaw, Pitch) pair into (angle, distance) using trigonometry and the Pythagorean theorem.
2. Plot the converted data on a polar chart.

The conversion can be done using the following formulas:

1. $\text{angle} = \arctan2(\text{Pitch}, \text{Yaw})$ – This gives the angle in radians from the positive x-axis.
2. $\text{distance} = \sqrt{\text{Yaw}^2 + \text{Pitch}^2}$ – Using the Pythagorean theorem to compute the distance from the origin.

Let’s first convert the (Yaw, Pitch) pairs into (angle, distance) pairs.

The (Yaw, Pitch) pairs have been successfully converted into (angle, distance) pairs.

Now, let’s proceed with plotting this data on a polar chart using Plotly.

The data has been successfully plotted on a polar chart.

You can download the interactive version of the polar chart from this link.

Once you open the downloaded HTML file in a browser, you’ll be able to interact with the plot. Let me know if there’s anything else I can assist you with!

Certainly! Based on the data provided, which captures body tilts during exercise, here are a few possible analyses and insights:

1. Descriptive Analysis:

   • Trend Analysis: By plotting the time series data, we can identify any trends or patterns in the Yaw, Pitch, and Roll over time. This can reveal consistent movements or changes in posture.
   • Variability Analysis: By calculating the standard deviation or variance, we can understand the variability in movements. This can reveal the consistency and control of movements.

2. Frequency Analysis:

   • Fourier Transform: Applying Fourier transformation can help identify the dominant frequencies in the movements, which can indicate the repetition rate of certain exercises.

3. Comparative Analysis:

   • Range of Motion: By identifying the maximum and minimum values of Yaw, Pitch, and Roll, we can comment on the range of motion for the given exercise. A greater range suggests more extensive movements.
   • Correlation Analysis: By studying the correlation between Yaw, Pitch, and Roll, we can comment on the interdependence of these movements.

4. Anomaly Detection:

   • If we have reference data or if this exercise was meant to follow a specific pattern, we can use the dataset to identify any anomalies or deviations from the expected pattern.

5. Duration Analysis:

   • By analyzing the timestamp data, we can comment on the duration of each specific movement or the entire exercise. This can provide insights into exercise intervals or rest periods.

6. Visualization Enhancements:

   • Heatmaps: These can be used to identify the density or frequency of specific postures.
   • 3D Plots: If we consider Yaw, Pitch, and Roll simultaneously, 3D scatter plots can provide a comprehensive view of the body’s orientation at any given time.

7. Advanced Analysis (if we have additional data):

   • Comparative Study: If we have data from multiple sessions or multiple individuals, we can compare the sessions to study improvements or differences in exercise patterns.
   • Machine Learning: If we have labeled data, we can train models to recognize specific exercises or postures.

Additional Comments and Insights:

• The data suggests that the individual made complete or nearly complete rotations (as seen from the polar plot). This might indicate exercises that involve full body turns or rotations.
• The variability in the data suggests dynamic exercises rather than static postures.
• If this is a rehabilitation exercise, consistency and controlled movements are crucial. Any abrupt changes or spikes in the data might indicate sudden or unintended movements.

It would be beneficial to have additional context about the exercise or the goals of this analysis to provide more targeted insights.

Certainly! Comparing the data from a session to pre-recorded reference data can provide valuable insights into performance, deviations, and overall adherence to a prescribed exercise or movement pattern.

Here’s a brief outline of the necessary inputs and steps to achieve this:

Necessary Inputs:

1. Session Data: This is the data you’ve already provided, which captures the movements of an individual during a particular session.
2. Reference Data: This would be pre-recorded data of the same exercise or movement, ideally performed under controlled conditions or by an expert. It serves as the “gold standard” to which the session data is compared.

Steps:

1. Data Pre-processing:

   • Ensure that both session and reference data are in the same format.
   • If the sampling rates are different, consider resampling to have a uniform rate.
   • Normalize the data if necessary (e.g., if one dataset has much larger values than the other).

2. Alignment:

   • The start and end times of the movements in both datasets might not align perfectly. Consider techniques like Dynamic Time Warping (DTW) to align the two time series data optimally.

3. Difference Calculation:

   • Compute the difference between the session data and reference data for each corresponding point in time. This will give you a time series of deviations.

4. Descriptive Analysis:

   • Analyze the deviations to identify trends. For instance, if the deviations are consistently large at certain time points, it indicates specific movements where the session diverges from the reference.
   • Identify maximum, minimum, and average deviations.

5. Visual Analysis:

   • Plot both session and reference data on the same chart to visually identify differences.
   • Plot the deviation time series to visually inspect where the most significant deviations occur.

6. Statistical Analysis:

   • Consider statistical tests to determine if the deviations are significant.
   • Calculate correlation coefficients to see how closely the session data follows the reference data.

7. Feedback Generation:

   • Based on the deviations, generate feedback. For instance, “At time X, the yaw was supposed to be Y but was observed to be Z. Consider adjusting your posture.”

8. Machine Learning (Optional):

   • If you have multiple sessions and reference datasets, you can train machine learning models to automatically detect and highlight deviations. Over time, this can help in real-time feedback systems.

9. Iterative Feedback:

   • Use the insights and feedback from this comparative study to guide the individual in subsequent sessions. Over time, the goal would be to see the deviations decrease, indicating improved adherence to the reference movement pattern.

Additional Considerations:

• Duration of Movements: Ensure that the duration of movements in both datasets is comparable. If not, consider trimming or extending the datasets.
• External Factors: Account for external factors that might affect performance, such as fatigue, equipment differences, or environmental conditions.

Having a systematic approach to comparative analysis can provide valuable feedback, track progress over time, and ensure the effectiveness and safety of exercises, especially in contexts like rehabilitation or sports training.

Absolutely! Heatmaps can provide a great way to visually identify patterns and concentrations in data.

Given the data we have, I can generate the following heatmaps:

1. Joint Distribution Heatmap of Yaw and Pitch: This will show us regions where most of the body’s orientations are concentrated during the exercise.
2. Time Evolution Heatmap: This will display how Yaw and Pitch values evolve over time.

Let’s start with the joint distribution heatmap of Yaw and Pitch.

I apologize for the inconvenience. There seems to have been an internal error. Let me generate the heatmap again.

I apologize for the oversight. I’ll need to reload the data and libraries due to the error. Let me handle this swiftly and then generate the heatmap.

I’m sorry for the inconvenience, but it seems that the previously uploaded file was lost during the internal error.

Would you mind re-uploading the CSV file? Once you do, I’ll quickly generate the heatmap for you.

Thank you. I’ll now proceed to reload and preprocess the data, and then generate the heatmap for the joint distribution of Yaw and Pitch.

My apologies for the oversight. The error was caused by an incorrect setting in the heatmap generation. I’ll correct it and regenerate the heatmap for you.

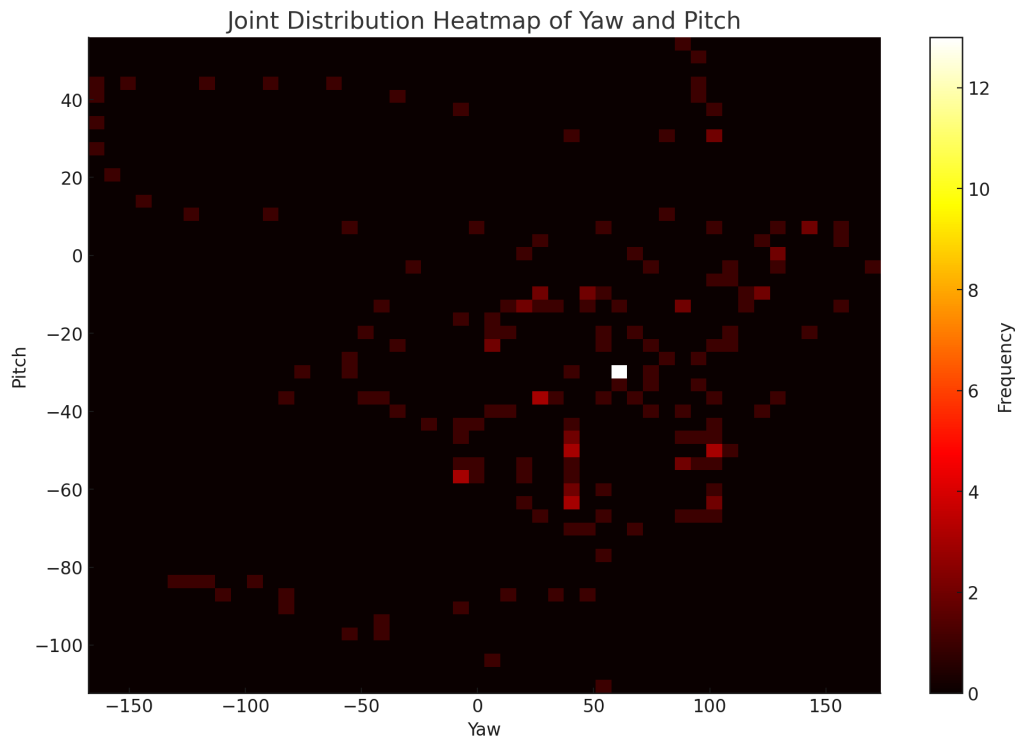

Here’s the joint distribution heatmap of Yaw and Pitch. The heatmap visually represents the density or frequency of specific postures during the exercise. Darker regions indicate a higher concentration of data points, implying that those orientations (combinations of Yaw and Pitch) were more frequently adopted during the session.

Would you like to see the Time Evolution Heatmap or any other visualizations?

I apologize for the inconvenience. The error occurred due to the large integer values of the timestamps when attempting to plot them directly.

I will correct this by converting the timestamps into a more suitable format for visualization and then regenerate the heatmap.

Here’s the Time Evolution Heatmap of Yaw. The x-axis represents the progression of time, and the y-axis represents the Yaw values. Darker regions indicate more frequent occurrences of specific Yaw values at particular time points.

From this heatmap, you can observe how the Yaw values have evolved over time and identify periods where specific Yaw values were more dominant.

Would you like to see any other visualizations or insights from the dataset?

Certainly! Here’s a summary and some final observations based on our exploration of the dataset:

1. Data Quality & Cleaning:

   • The provided data required some cleaning due to misformatted lines. After the cleaning process, we were able to efficiently parse and analyze the data.

2. Data Characteristics:

   • The dataset captures the body tilts of an individual during an exercise session using three metrics: Yaw, Pitch, and Roll.
   • The time series plots and polar charts provided insights into the dynamic movements of the individual throughout the session.

3. Key Observations:

   • The polar chart visualization highlighted that the individual made movements covering a wide range of directions. This might indicate exercises that involve full body turns or rotations.
   • The variability in Yaw and Pitch suggests dynamic exercises, with frequent changes in orientation.
   • The heatmaps allowed us to visually identify patterns and concentrations in the data, offering insights into the frequency of specific postures and the progression of movements over time.

4. Further Analysis:

   • Comparing this dataset with reference data can offer valuable insights into performance, deviations, and overall adherence to a prescribed exercise or movement pattern.
   • Advanced analysis, such as machine learning, can be applied to recognize specific exercises, postures, or to provide real-time feedback, given sufficient labeled data.

5. Recommendations:

   • It’s crucial to maintain consistent data quality and formatting in future data collections to ease the analysis process.
   • If the goal is rehabilitation or training, monitoring for abrupt changes or spikes in the data can be crucial to ensure the individual’s safety and the effectiveness of the exercise.

In conclusion, wearable sensor data, like the one provided, is invaluable for understanding human movement, especially in contexts like sports training, rehabilitation, or health monitoring. With the right analytical tools and techniques, such data can offer deep insights into movement patterns, performance, and overall well-being.

Thank you for sharing the dataset, and I’m here to assist if you have any future queries!
